15 Circuit - 9 Fuse Highway Plus Series Modular Fuse Panel System

15 Circuit - 9 Fuse Highway Plus Series Modular Fuse Panel System with Universal Harness

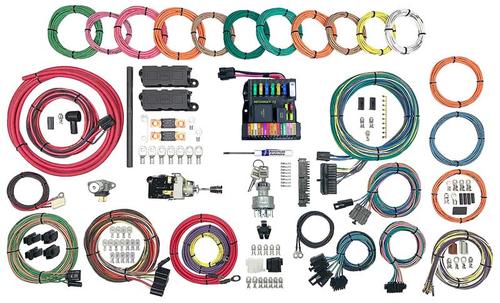

Our modular design panel is a rock-solid wiring kit designed to give you a trouble-free, upgraded electrical system with a level of comfort you can trust and features 15 power outputs in 9 fuses and 1 circuit breaker with gauge cluster disconnect for easy maintenance.

The fuse box is made of heat-resistant nylon, anti-push back locks, single-side wire access with self- locking, screw-down connections all mounted on a nylon base and comes with a 175A mega-fuse located at the starter/alternator for extra protection.

Our new high amp alternator and main power connection kit. This allows for the use of high amp alternators, and provides an even better level of fuse protection for the panel and charging system. This new connection kit utilizes 6ga wire and two 175amp Megafuses.

A full-color schematic with component symbols and step-by-step instructions for a trouble-free installation is included. Truly a complete kit!

Kits includes :

• Engine compartment wiring for: oil pressure, water temperature, starter, neutral safety switch, ignition switch, distributor coil, main power feed, alternator and regulator. Coil leads supplied with connector for GM HEI distributor. Bypass wire included for point type distributors
• Headlight circuit complete with circuit breaker for headlight switches without integral circuit breaker. Complete wiring for all running lights, brake lights and directional lights, and license lights and third brake lights
• Dash wiring included for electric gauges such as oil pressure, water temp., voltmeter, fuel gauge, and tachometer. Lighting for all gauges, speedometer, turn signal & high beam indicator lights. Complete wiring for radio, he at and A/C, and wipers
• Wiring for steering column including horn, directional signal switch and 4-way hazard switch. Standard 3-7/8" GM column connector (both male and female) are provided to directly plug-into any 1969 -74GM steering column. Connector bodies and terminals are provided to also make mating to any make column a breeze
• A built-in LED flasher to support LED turn signals without the need to purchase an additional item.
• A back-up light feed and power wires to make the harness easier to install in a more modern vehicle.
• Improvements to our instructions to cite a wider range of examples and real-world scenarios. The panel labeling has also been updated along with the above physical changes, including wording modifications for enhanced clarity.
• Extra connectors and wiring to more easily support a 4-headlight system without an additional add-on purchase.
• Longer neutral safety wires for cars with console shifters.
• An additional ignition circuit to support aftermarket components.
• Improved ignition switch with mating connector and 4 additional accessory and ignition terminals. Uses a square GM-style key.
• Wiring for radio, heat and A/C, and wipers
• Spare battery and accessory circuits
• Fuses, flashers, and relays included
• Horn relay on panel
• Standard turn signal and hazard flasher circuits
• Circuit breaker capability on 1 battery and 1 accessory circuit
• Wire circuit ink-jet labeling every 2" or 3"
• Heavy duty terminals and internal power buss
• Rugged factory terminals and terminations within the fuse panel assembly
• Color schematics and easy to understand installation instructions included
• Patented Hookes Law, Screw down connection system

Switches Included:

• Dash mounted headlight switch
• Dash mounted ignition switch
• Floor mounted headlight dimmer switch
