1947-75 Chevrolet; Hood Pilot Bolt; 3"; Various Models

1947-75 Chevrolet; Hood Pilot Bolt; 3"; Various Models

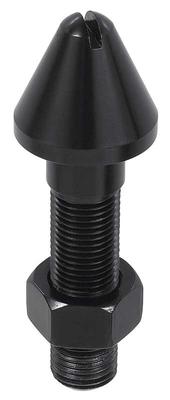

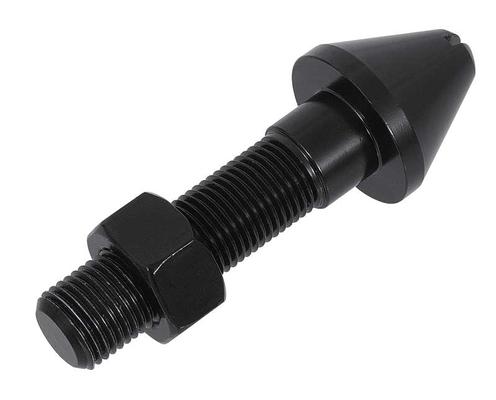

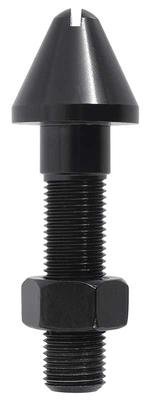

Reproduction of the 3" hood latch pilot bolt for various GM models. The bolt is designed to attach to the lock plate retainer. Once installed, the hood pop-up spring surrounds this bolt. Manufactured in case-hardened steel for long-lasting dependability. Measures 1/2"-20 x 3" overall length with a 5/8" non-threaded shank. 1 required.

Features and Benefits:

• Authentic reproduction matching original GM specifications
• Constructed from case-hardened steel for strength and durability
• Precisely machined 1/2"-20 threads for secure attachment
• Correct 5/8" non-threaded shank for proper spring fitment
• Direct replacement for worn or missing pilot bolts

Technical Information:

• Material: Case-hardened steel
• Thread Size: 1/2"-20
• Overall Length: 3"
• Shank Diameter: 5/8" (non-threaded section)
• Application: Designed to work with hood pop-up spring and lock plate retainer
• Quantity: 1 required per vehicle

Chevrolet Applications

• 1960 - 1965 Chevrolet Bel Air
• 1960 - 1965 Chevrolet Biscayne
• 1960 - 1961 Chevrolet Brookwood
• 1964 - 1965 Chevrolet Chevelle
• 1962 - 1965 Chevrolet Chevy II Nova
• 1958 - 1969 Chevrolet Corvette
• 1960 - 1965 Chevrolet Impala
• 1960 - 1961 Chevrolet Kingswood
• 1964 - 1964 Chevrolet Malibu
• 1960 - 1961 Chevrolet Nomad
• 1960 - 1961 Chevrolet Parkwood

Chevrolet Truck Applications

• 1958 - 1959 Chevrolet 3100
• 1975 - 1975 Chevrolet C10
• 1962 - 1967 Chevrolet C10 Panel
• 1962 - 1974 Chevrolet C10 Pickup
• 1967 - 1975 Chevrolet C10 Suburban
• 1975 - 1975 Chevrolet C20
• 1967 - 1967 Chevrolet C20 Panel
• 1962 - 1974 Chevrolet C20 Pickup
• 1967 - 1975 Chevrolet C20 Suburban
• 1975 - 1975 Chevrolet C30
• 1962 - 1966 Chevrolet C30 Panel
• 1962 - 1974 Chevrolet C30 Pickup
• 1965 - 1965 Chevrolet El Camino
• 1975 - 1975 Chevrolet K10
• 1962 - 1974 Chevrolet K10 Pickup
• 1967 - 1975 Chevrolet K10 Suburban
• 1975 - 1975 Chevrolet K20
• 1967 - 1967 Chevrolet K20 Panel
• 1962 - 1974 Chevrolet K20 Pickup
• 1967 - 1975 Chevrolet K20 Suburban
• 1968 - 1974 Chevrolet K30 Pickup
• 1975 - 1975 Chevrolet K5 Blazer
• 1960 - 1960 Chevrolet Sedan Delivery
• 1962 - 1966 Chevrolet Suburban
• 1947 - 1975 Chevrolet Truck
• 1947 - 1955 Chevrolet Truck 3100

GMC Truck Applications

• 1975 - 1975 GMC C15
• 1975 - 1975 GMC C15 Suburban
• 1975 - 1975 GMC C25
• 1975 - 1975 GMC C25 Suburban
• 1975 - 1975 GMC C35
• 1975 - 1975 GMC Jimmy
• 1975 - 1975 GMC K15
• 1975 - 1975 GMC K15 Suburban
• 1975 - 1975 GMC K25
• 1975 - 1975 GMC K25 Suburban
• 1947 - 1975 GMC Truck
