1968-72 C/10 Pitman Arm with Power Steering

1968-72 Chevy, GMC Pickup, Blazer, Jimmy, Suburban, Van; Pitman Arm; with Power Steering; 2 Wheel Drive

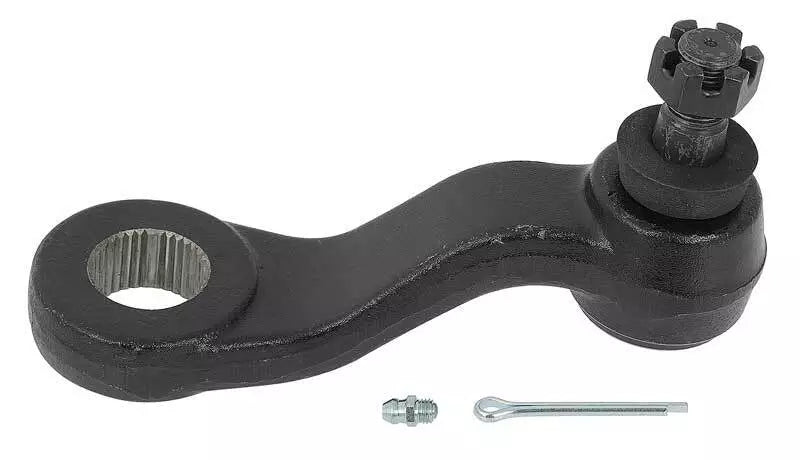

Quality reproduction pitman arm for various 1968-72 Chevrolet and GMC light truck applications. This hard-to-find steering linkage component is ideal for rebuilding your stock steering system. Improves steering response; reduces wander; reduces vibration; reduces tire wear and restores OE alignment. Each package includes: (1) Pitman Arm, (1) Castle Nut, (1) Dust Seal, (1) Cotter Pin, (1) Grease Fitting.

Product Specifications

• Stud Dia. Small End Of Taper: 0.668
• Sector Shaft Diameter: 1.250
• Sector Shaft Spline Large Inner Diameter: 1.128
• Length Center to Center: 5.215
• Key Way (Male or Female): Male
• Off Set: Up
• Number of Splines: 32
• Greasable: Yes
• Hardware Included: Yes
• Arm Type: Bent
• Arm Fixture: Stud
• Arm Fixture Stud Thread/Hole Inside Diameter: 5/8-18

Chevrolet Truck Applications:

• 1968-1972 Chevrolet C10 Pickup 2WD
• 1968-1972 Chevrolet C20 Pickup 2WD
• 1968-1972 Chevrolet C30 Pickup 2WD
• 1969-1972 Chevrolet Blazer 2WD
• 1968-1972 Chevrolet C10 Suburban 2WD
• 1968-1972 Chevrolet C20 Suburban 2WD
• 1971-1982 Chevrolet G10 Van 2WD
• 1971-1982 Chevrolet G20 Van 2WD
• 1970-1982 Chevrolet G30 Van 2WD
• 1968-1972 Chevrolet P10 Van 2WD
• 1968-1972 Chevrolet P20 Van 2WD
• 1968-1972 Chevrolet P30 Van 2WD

GMC Truck Applications:

• 1968-1972 GMC C15 Pickup 2WD
• 1968-1972 GMC C25 Pickup 2WD
• 1968-1972 GMC C35 Pickup 2WD
• 1970-1972 GMC Jimmy 2WD
• 1968-1972 GMC C15 Suburban 2WD
• 1968-1972 GMC C25 Suburban 2WD
• 1969-1978 GMC G15 Van 2WD
• 1971-1978 GMC G25 Van 2WD
• 1970-1978 GMC G35 Van 2WD
• 1968-1972 GMC P15 Van 2WD
• 1968-1972 GMC P25 Van 2WD
• 1968-1972 GMC P35 Van 2WD
