1968-74 Camaro, Nova, Firebird, Idler Arm Assembly; Various Models

1968-74 Camaro, Nova, Firebird, Idler Arm Assembly; Various Models

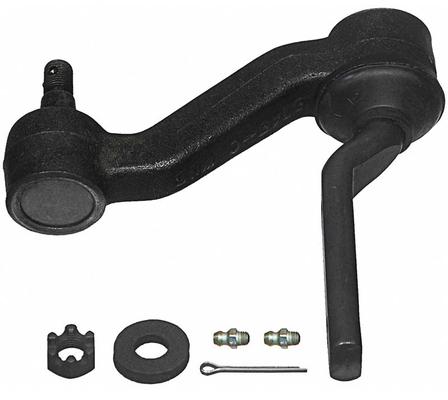

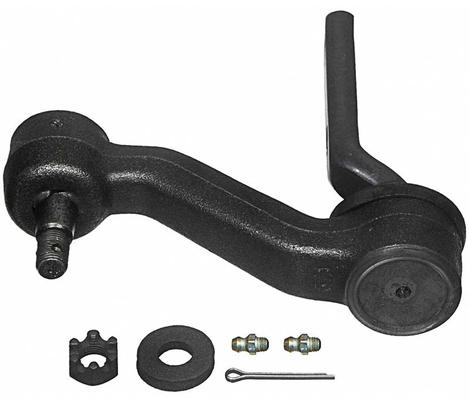

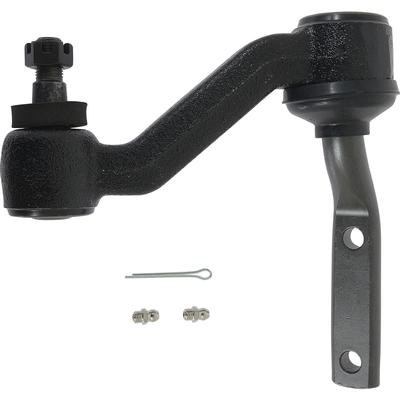

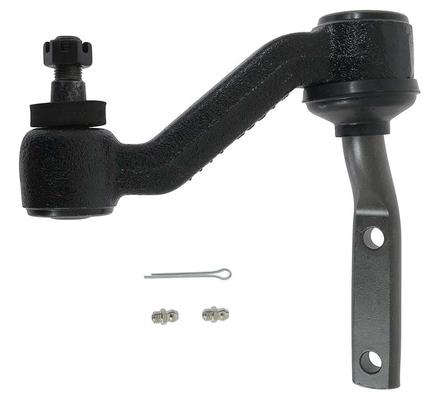

Reproduction of the original idler arm assembly designed for use with various 1968-74 Camaro, Firebird, Nova, and GM X body models. This pivoting support for the steering linkage appears on older recirculating ball-type steering systems (pre-rack & pinion) and functions like the pitman arm in a rack and pinion system. This black, cast-iron steering arm features two holes for mounting to the frame, a rubber boot on the mounting section of the idler arm and also includes two fittings and a hex-nut with slots in it to retain a cotter pin.

Product Specifications

• Length Center to Center: 5.3125
• Thread Size: 1/2-20
• Hardware Included: Yes
• Ball Design: Yes
• Arm Type: Bent
• Arm Fixture: Stud
• Bracket Fixture: Ball
• Bracket Holes #: 2
• Arm Fixture Stud Thread/Hole Inside Diameter: 1/2-20
• Greasable: Yes

Buick Applications:

• 1973-1974 Buick Apollo

Chevrolet Applications:

• 1968-1969 Chevrolet Camaro
• 1968-1968 Chevrolet Chevy II
• 1968-1974 Chevrolet Nova

Oldsmobile Applications:

• 1973-1974 Omega

Pontiac Applications:

• 1968-1968 Pontiac Firebird
• 1971-1972 Pontiac Ventura (exc. 350)
