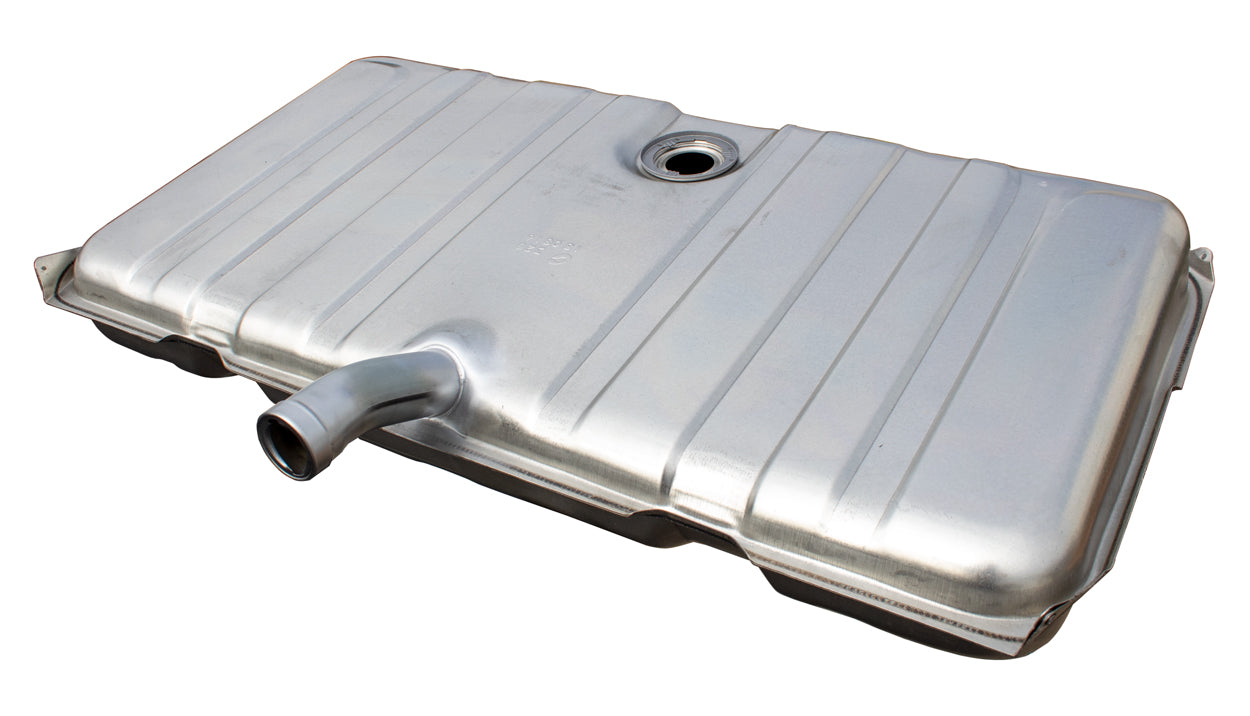

1969 Camaro, Firebird; Fuel Tank; with Neck; 18 Gallon; Zinc Coated Steel

1969 Camaro, Firebird; Fuel Tank; with Neck; 18 Gallon; Zinc Coated Steel

Reproduction fuel tank for 1969 Camaro and Firebird models. This reproduction fuel tank is manufactured in zinc coated steel and includes the fuel sender lock-ring and o-ring gasket for a complete installation. This is a 18 gallon fuel tank that replaces the old tank perfectly. Note: Fuel tank sending unit available separately. Refer to part number # ST10646 for reproduction gas cap. Replaces original GM part number 3953844.

Fuel Tank Features:

• Manufactured in Quality Stamped Steel
• Exact Reproduction of the Original Fuel Tank
• Features Zinc Coating for Rust and Corrosion Prevention
• 18 Gallon Tank
• Includes Fuel Sender Lock Ring and O-Ring Gasket
• Replaces the Original Fuel Tank Exactly!

Additional Information

• Important: Some early production Firebird and Trans Am fuel tanks were delivered with vent pipe and utilized non-vented gas caps. They were replaced mid-year with a Camaro style tank and a vented fuel cap. DO NOT use this tank with a non-vented gas cap.

Technical Specifications

• 40" long x 21" wide x 8-1/2" high

Chevrolet Applications

• 1969 - 1969 Chevrolet Camaro Base
• 1969 - 1969 Chevrolet Camaro RS
• 1969 - 1969 Chevrolet Camaro Z28
• 1969 - 1969 Chevrolet Camaro SS

Pontiac Applications

• 1969 - 1969 Pontiac Firebird Base
• 1969 - 1969 Pontiac Firebird Trans Am
• 1969 - 1969 Pontiac Firebird Sprint
• 1969 - 1969 Pontiac Firebird 400
• 1969 - 1969 Pontiac Firebird 350
• 1969 - 1969 Pontiac Firebird 350 HO

Note: Shipped double oversize.

AMD-890-3569-N

OER-FT1001A
