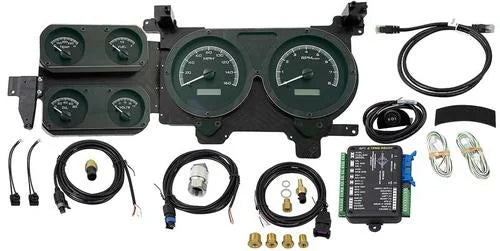

1973-87 GM Pickup; VHX Series KM/H Gauge Set; with Black Alloy Face and Blue Backlighting

1973-87 GM Pickup; VHX Series KM/H Gauge Set; with Black Alloy Face and Blue Backlighting

Add a modern appearance to your truck with this VHX gauge cluster from Dakota Digital. Six gauges provide traditional readouts while digital LCD message centers can select between clock, odometer, hour meter, 0-60 timer, 1/4 mile timer, and shift indicator.

Behind the scenes, micro-controlled precision stepper motors, and solid state sensors bring your classic instrument cluster into the modern age.

Made in USA

Designed to fit directly into the stock or reproduction front dash bezel in 1973-87 Chevrolet/GMC trucks.

Analog Gauges:

• Speedometer: 0-160 KM/H

• Tachometer: 0-8,000 RPM

• Oil Pressure: 0-80 PSI

• Water temperature: 100-260° C

• Fuel level: E, 1/4, 1/2, 3/4, F

• Voltmeter: 9-17 VDC

• Lighting: Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face

Built-in Indicators:

• Turn signals (Left / Right)

• High beam

• Check engine

• Parking brake

• Gear position: Requires sending unit/module

 DD1000

• (sold separately).

Digital Message Centers:

• Standard Displays :
• Odometer (one time user settable, million mile)

• Dual (A/B) trip meter (0-9,999.9)

• Clock (12 hour)
• Performance Meters:
• 0-60 MPH timer (0-100 kmh)

• 1/4 mile time

• 1/4 mile end speed (trap speed)

• High speed recall

• High RPM recall

• Lighting:
• Auto-contrasting LCD display for optimal view in the brightest of sunlight. LED backlit at night to match/complete the look at night

Included Sensors:

• Water temperature: 1/8 " NPT, ground isolated sensor with a 10 foot harness

• Oil pressure: 1/8" NPT solid state sensor with a 10 foot harness

• Cable driven speed sensor/ generator. Replaces GM style speedometer cables with a 10 foot harness

• Bushings: Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads

Note: Fits OE or reproduction dash bezel (not included).

Note: Special order, must be prepaid. Non-returnable. Please contact OER by Phone, Fax or E-Mail to order this item. Discount exempt.
