Holley GM LS Swap Oil Pan - Black
Holley GM LS Swap Oil Pan - Black
Regular price
$550.00 USD
Regular price
Sale price
$550.00 USD
Unit price
/
per
Couldn't load pickup availability
GM's popular LS engines are finding their way into a large variety of vehicles. They make great power, plus they're very durable and reliable. Unfortunately, the factory LS pans don't always fit or they hang too low for today's hot rods. Holley's new LS Swap Engine Oil Pan is designed to help! It provides maximum clearance to the chassis and ground, plus provides an OE (Original Equipment) style fitment for durability and proper sealing. "Holley's new LS engine swap mount plates made the EcoNova's E-Rod LS3 swap simple and painless as well as improving our weight distribution with ideal engine set-back, and the LS Retro-Fit oil pan fit the subframe perfectly while still offering excellent oil control under high cornering loads." -Christopher Campbell, Popular Hot Rodding Magazine
Features:
- Provides OE Style fitment - OE oil filter mounting, OE oil cooler port provision, OE engine NVH suppression, OE flange gasket and sealing, proper structural rigidity and OE bell-housing attachments
- Traditional high-quality cast aluminum with black finish

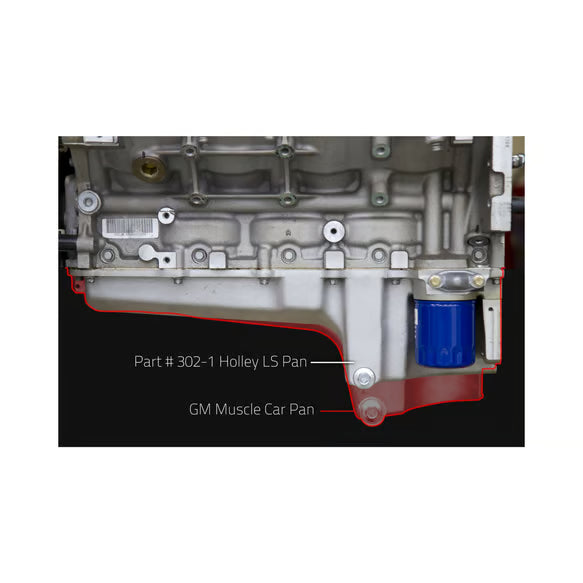

- Provides maximum clearance to chassis
- Cast and machined aluminum

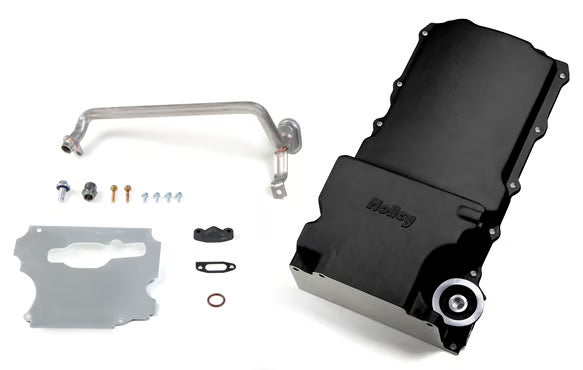

- Complete kit including sump baffle, pick-up tube, sump plug, oil filter stud & oil passage cover.
- Fits GM rear wheel drive applications that were originally equipped with a Small Block or Big Block Chevy engine and traditional rear sump oil pan*
- Maximum crankshaft stroke = 4.25"
| Application | GM LS Engines |
|---|---|
| Baffled | No |
| Brand | Holley |
| Capacity | 5.5 QT |
| Category | Engine |
| Choose Your Part | Oil Pan Kit |
| Color | Black |
| Crank Shaft Wiper Included | No |
| Dipstick Port | No |
| Drain Plug Included | Yes |
| Emission Code | 5 |
| Engine | GM Gen III/IV (LS) |
| Finish | Black Powdercoated |
| Grade Type | Performance |
| Material | Aluminum |
| Maximum Stroke | 4.25" |
| Oil Pan Capacity | 5.5 Quarts |
| Oil Pan Type | Cast |
| Part Type | Engine Oil Pan |
| Pickup Included | Yes |
| Product Type | Oil Pan Kit |
| Sub Category | Cylinder Block Components |
| Sump Location | Rear |
| Sump Type | Wet |
| Turbo Oil Drainback | No |
| Warranty | Manufacturer's Limited 90 Day Warranty |
| Windage Tray Included | No |
| UPC | 090127715048 |
| Part Number | 302-1BK |
